Keeping industrial and commercial equipment running reliably starts with a stable power source. If your existing 12V desktop adapter has become unreliable, damaged, or no longer delivers consistent output, the MEAN WELL GST40A12-P1J provides a dependable 40W replacement power supply designed for continuous operation in professional environments.

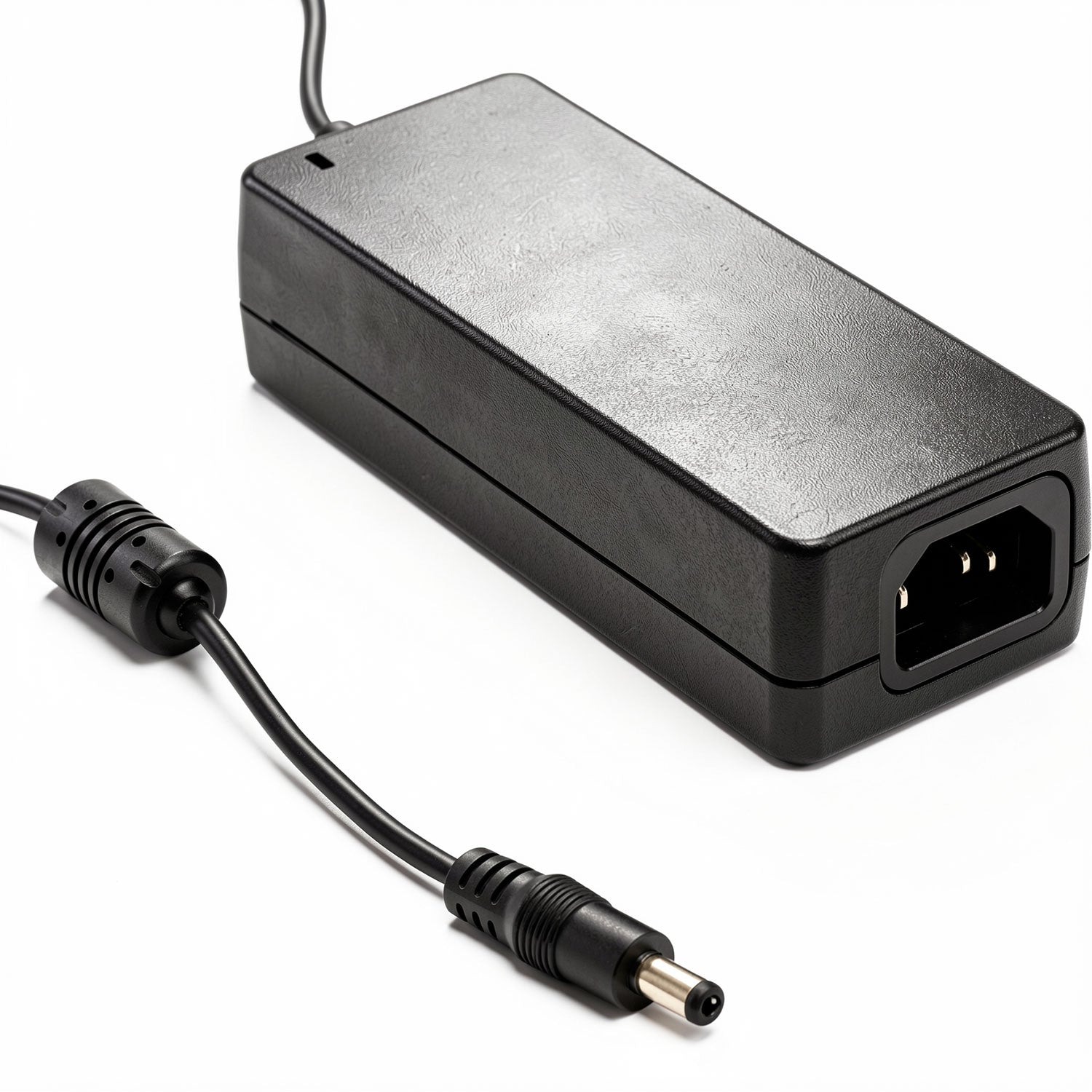

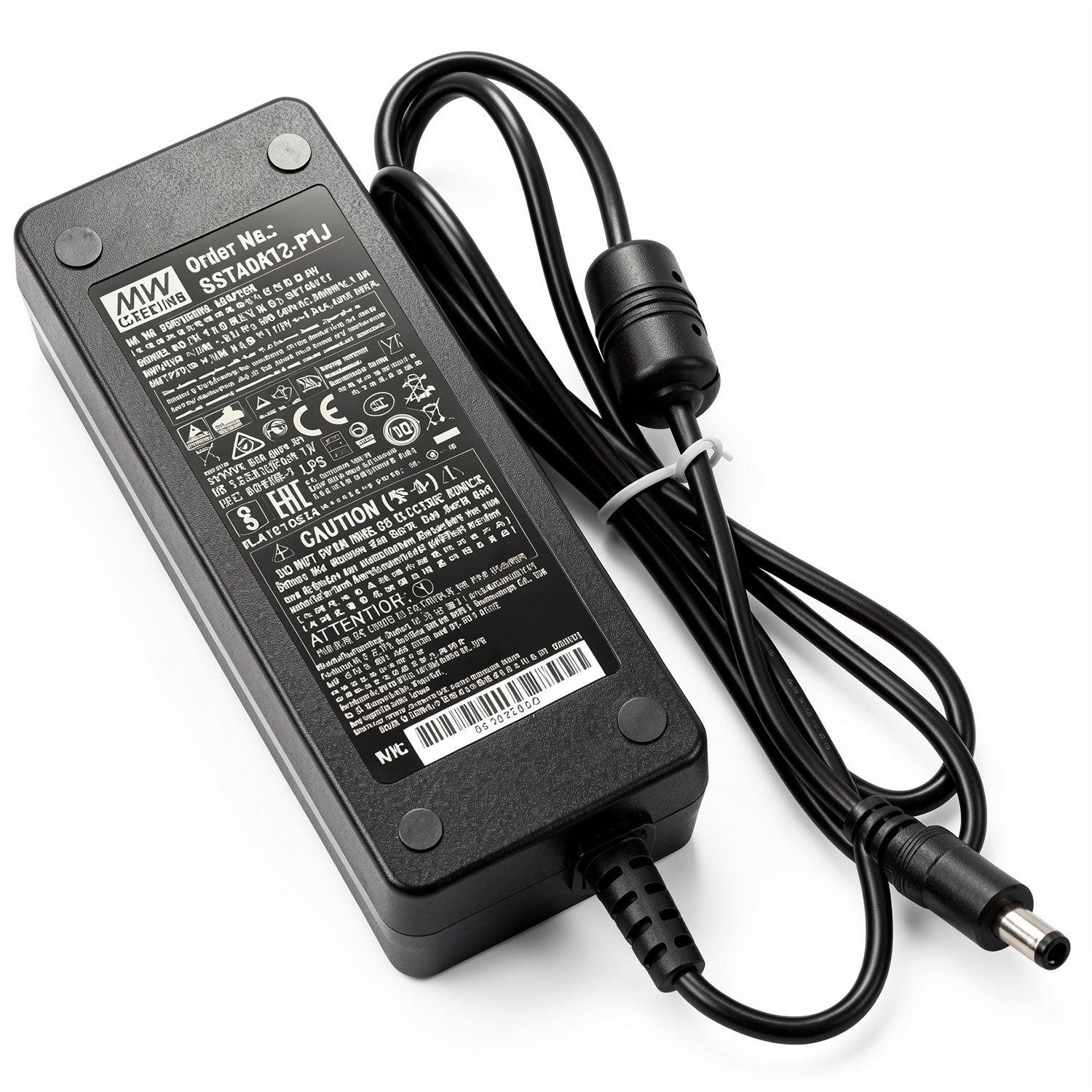

Built as part of the MEAN WELL GST40A Series, this desktop AC/DC adapter delivers a regulated 12V DC output at up to 3.34A through a standard 5.5mm × 2.1mm center-positive barrel connector. Its universal AC input, Level VI energy efficiency, and comprehensive protection features make it suitable for a wide range of industrial, commercial, networking, embedded, and automation applications.
Application Scenarios
- Industrial automation controllers and PLC systems
- Embedded computing platforms and single-board computers
- POS terminals and commercial payment equipment
- Networking devices, gateways, and communication equipment
- Access control systems and security controllers
- HMI operator panels and industrial displays
- Electronic instrumentation and testing equipment
Technical Specifications
| Brand | MEAN WELL |
| Model | GST40A12-P1J |
| Series | GST40A |
| Product Type | Desktop AC/DC Power Adapter (Class I) |
| Input Voltage | 90–264V AC, 47–63Hz / 127–370V DC |
| Output Voltage | 12V DC |
| Output Current | 3.34A |
| Maximum Output Power | 40W |
| Connector | 5.5mm × 2.1mm DC Barrel Plug (P1J) |
| Polarity | Center Positive |
| AC Input Connector | IEC 320-C14 |
| Operating Temperature | -30°C to +70°C |
| Energy Efficiency | DOE Level VI |
| No-Load Power Consumption | <0.075W |
| Protection Features | Short Circuit, Overload, Over Voltage |
OEM Replacement Compatibility
This power adapter can replace the following model:
- MEAN WELL GST40A12-P1J
Compatible Device Categories
- Industrial Controllers
- Embedded Systems
- POS Terminals
- Networking Equipment
- Communication Devices
- HMI Touch Panels
- Access Control Systems
- Electronic Test & Measurement Equipment
Replacement & Maintenance
An aging or unstable power adapter may cause unexpected equipment shutdowns, intermittent operation, or communication errors. Before replacing your power supply, always verify that your equipment requires a regulated 12V DC output, draws no more than 3.34A, and uses a 5.5mm × 2.1mm center-positive DC connector. Matching these specifications helps ensure safe and reliable operation.
Frequently Asked Questions
Q1: How do I verify compatibility?
A1: Check your existing power adapter label for a 12V DC output, a current requirement of up to 3.34A, and a 5.5mm × 2.1mm center-positive barrel connector. The connector size and output voltage should both match.
Q2: Can this adapter replace a lower-current 12V power supply?
A2: Yes. As long as the output voltage, connector type, and polarity are identical, a device requiring less than 3.34A will only draw the current it needs.
Q3: Is this suitable for continuous operation?
A3: Yes. The GST40A Series is designed for commercial and industrial applications where reliable long-term operation is required.
Q4: What connector does this adapter use?
A4: It uses a standard 5.5mm outer diameter × 2.1mm inner diameter DC barrel connector with center-positive polarity.
Q5: What protection features are included?
A5: The adapter incorporates protection against short circuits, overload conditions, and over-voltage events to help safeguard compatible equipment during normal operation.
