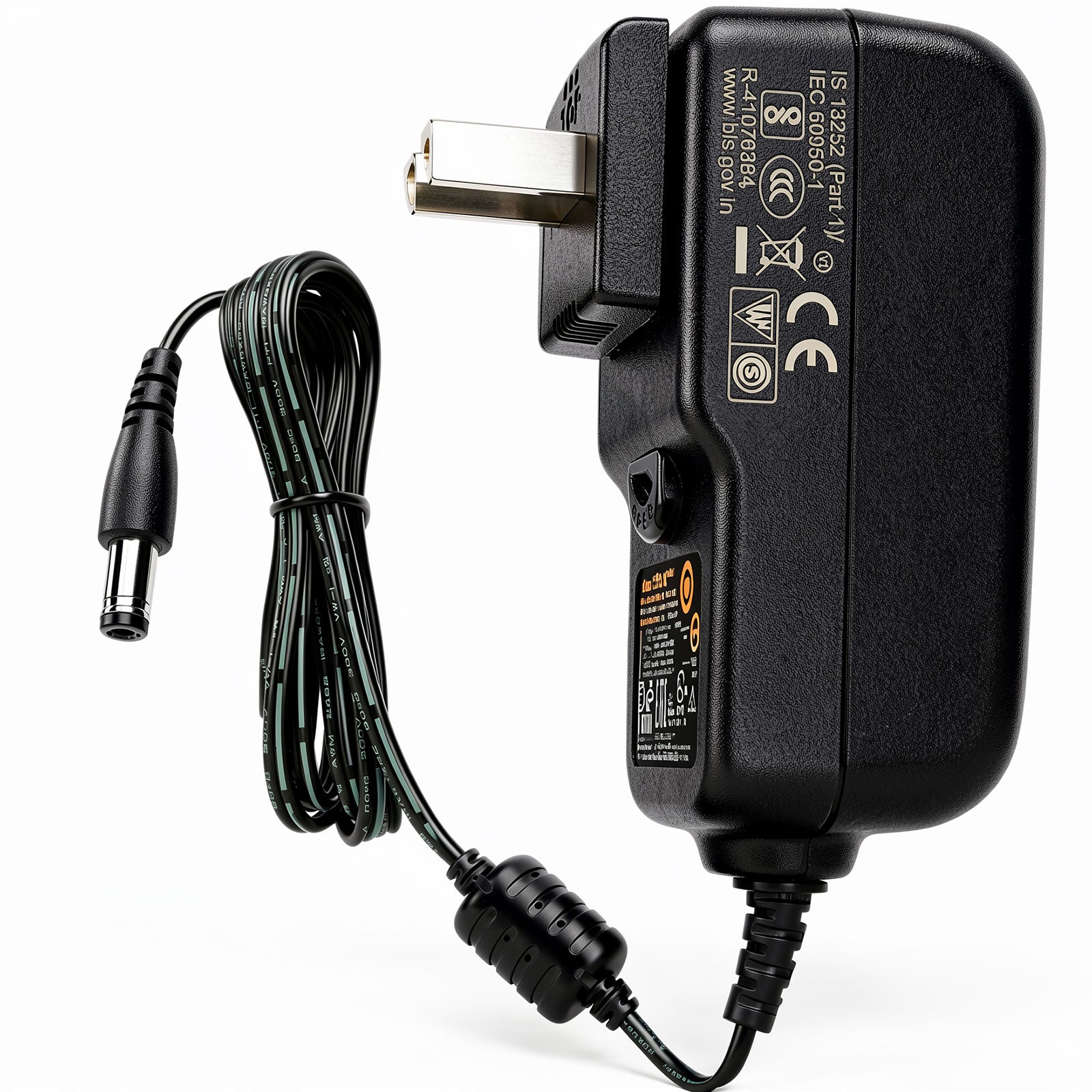

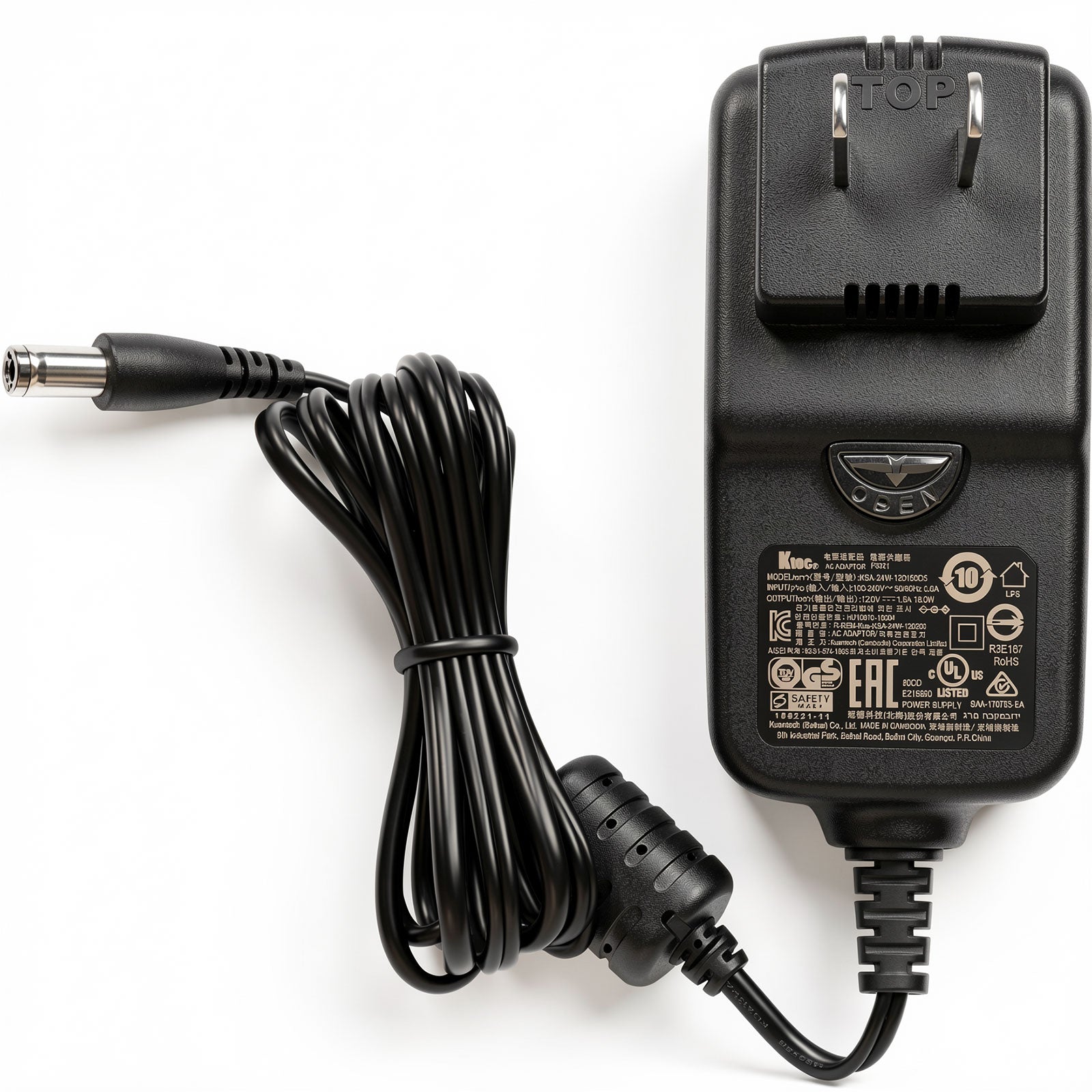

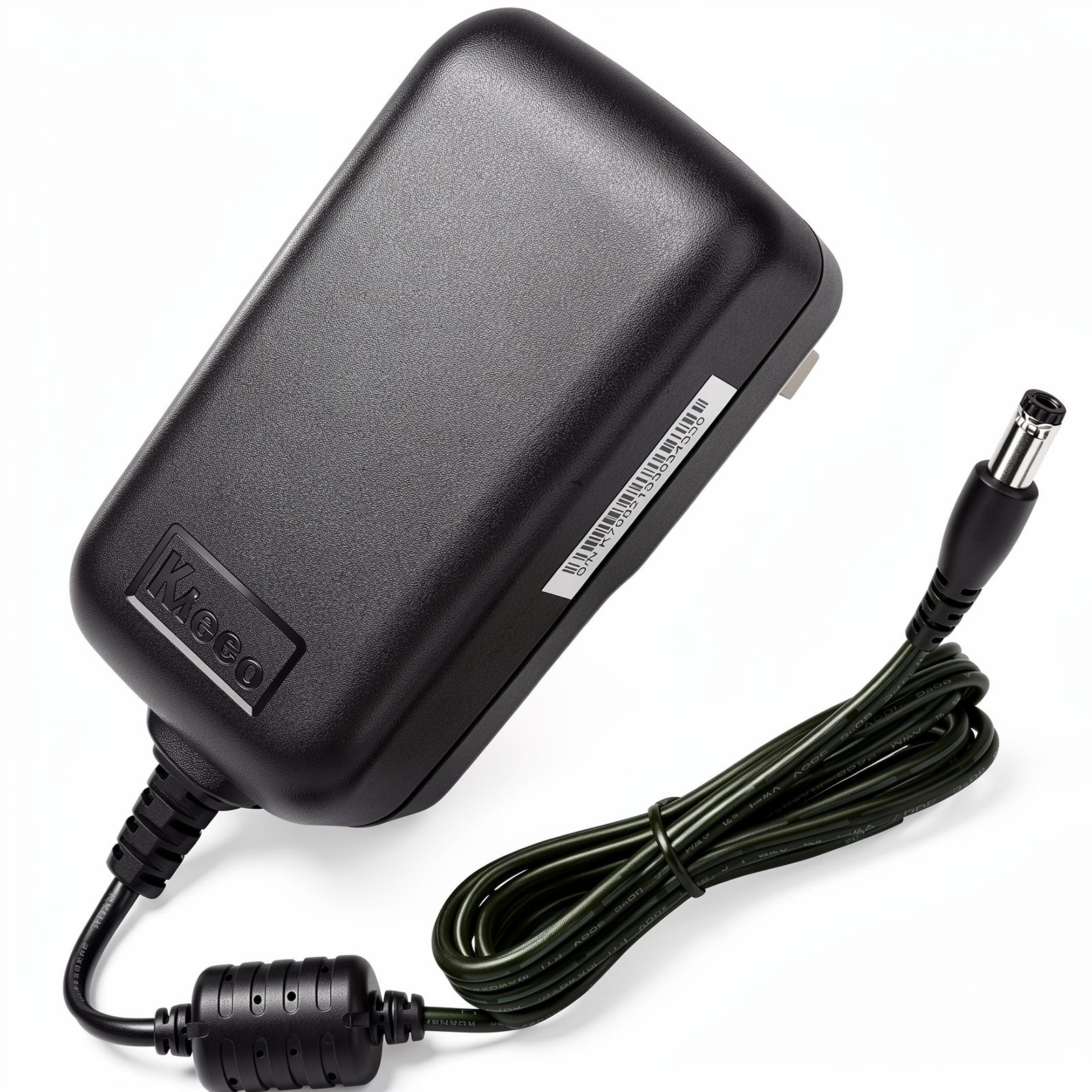

Keeping electronic equipment powered reliably requires an adapter that matches the correct voltage, current, and connector specifications. The Ktec KSA-24W-120150D5 AC/DC Power Adapter provides regulated 12V DC output at 1.5A for compatible electronic devices that require a 5.5mm × 2.5mm DC barrel connector.
Designed for everyday electronic applications, this external power adapter supports 100-240V AC input and delivers stable low-voltage DC power for compatible networking equipment, embedded devices, communication products, and other electronics. It is suitable for replacing a lost, damaged, or aging adapter when the electrical specifications match the original power supply.
Technical Specifications
| Brand | Ktec |
| Model | KSA-24W-120150D5 |
| Product Type | AC/DC Power Adapter |
| Input Voltage | 100-240V AC |
| Input Frequency | 50/60Hz |
| Output Voltage | 12V DC |
| Output Current | 1.5A |
| Maximum Output Power | 18W |
| DC Connector | 5.5mm × 2.5mm Barrel Plug |
| Polarity | Center Positive (Verify with original adapter) |
Compatible Device Categories
- Networking Equipment
- Embedded Electronic Devices
- Communication Equipment
- Consumer Electronics Requiring 12V DC Input
- Devices Using 5.5mm × 2.5mm DC Barrel Connector
Replacement & Maintenance
A failing power adapter may cause unstable operation, unexpected shutdowns, intermittent connectivity, or complete loss of power. Replacing the adapter with the correct voltage, current rating, connector size, and polarity can help restore normal device operation without replacing the entire system.
FAQ
What are the specifications of the Ktec KSA-24W-120150D5?
The adapter provides 12V DC output at 1.5A with an 18W maximum power rating and uses a 5.5mm × 2.5mm DC barrel connector.
How do I confirm compatibility before ordering?
Check your original adapter label and verify the output voltage, current requirement, connector size, and polarity match the specifications of this adapter.
Can this replace another 12V power adapter?
Yes, as long as the replacement adapter provides the same voltage, compatible current capacity, matching connector dimensions, and correct polarity.
What devices commonly use this type of adapter?
This type of AC/DC adapter is commonly used with networking equipment, embedded electronics, communication devices, and other low-voltage DC powered products.
