When a device uses a locking DC power connection, matching the voltage and current is only part of the replacement process. A plug that looks similar but lacks the required locking structure may not provide the same mechanical connection.

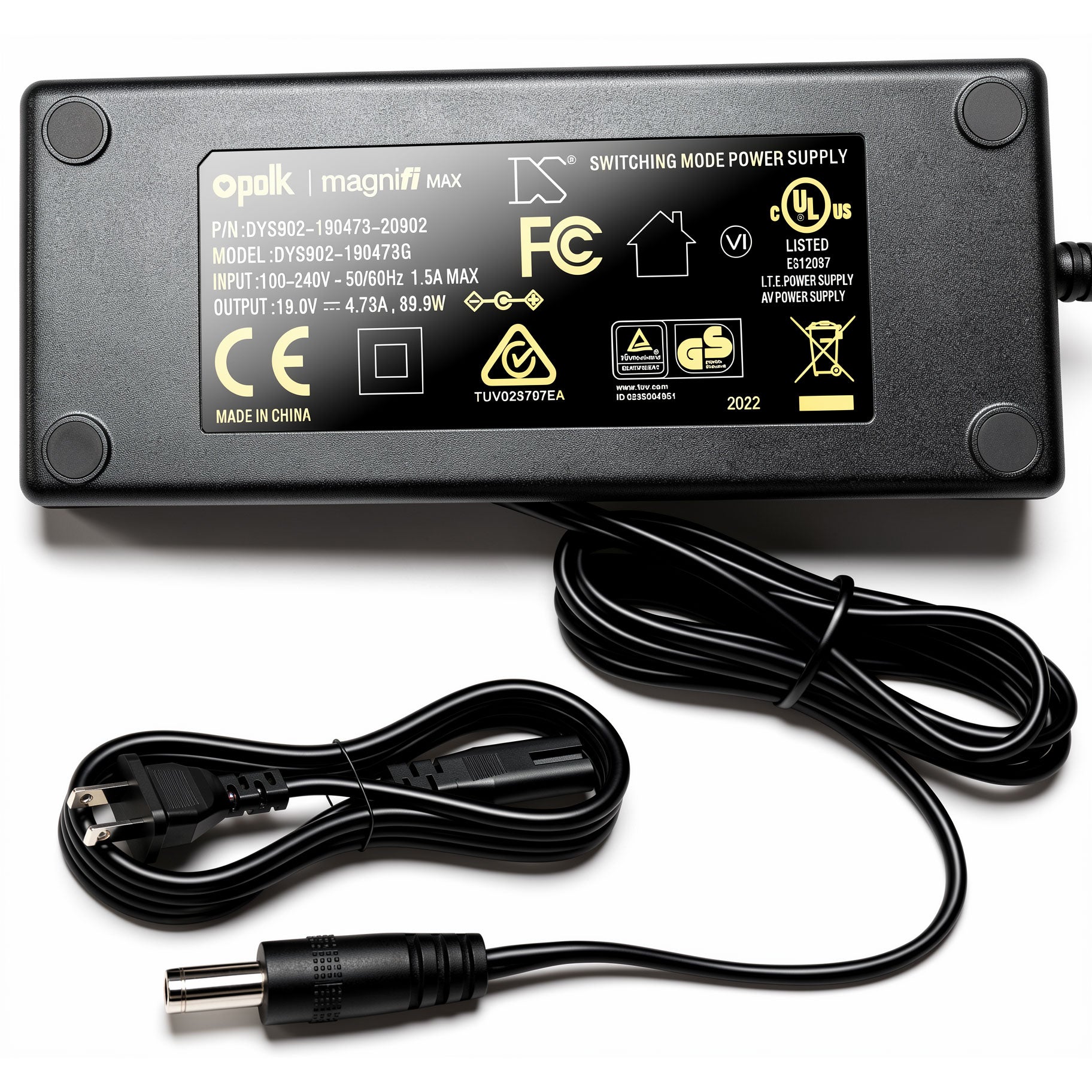

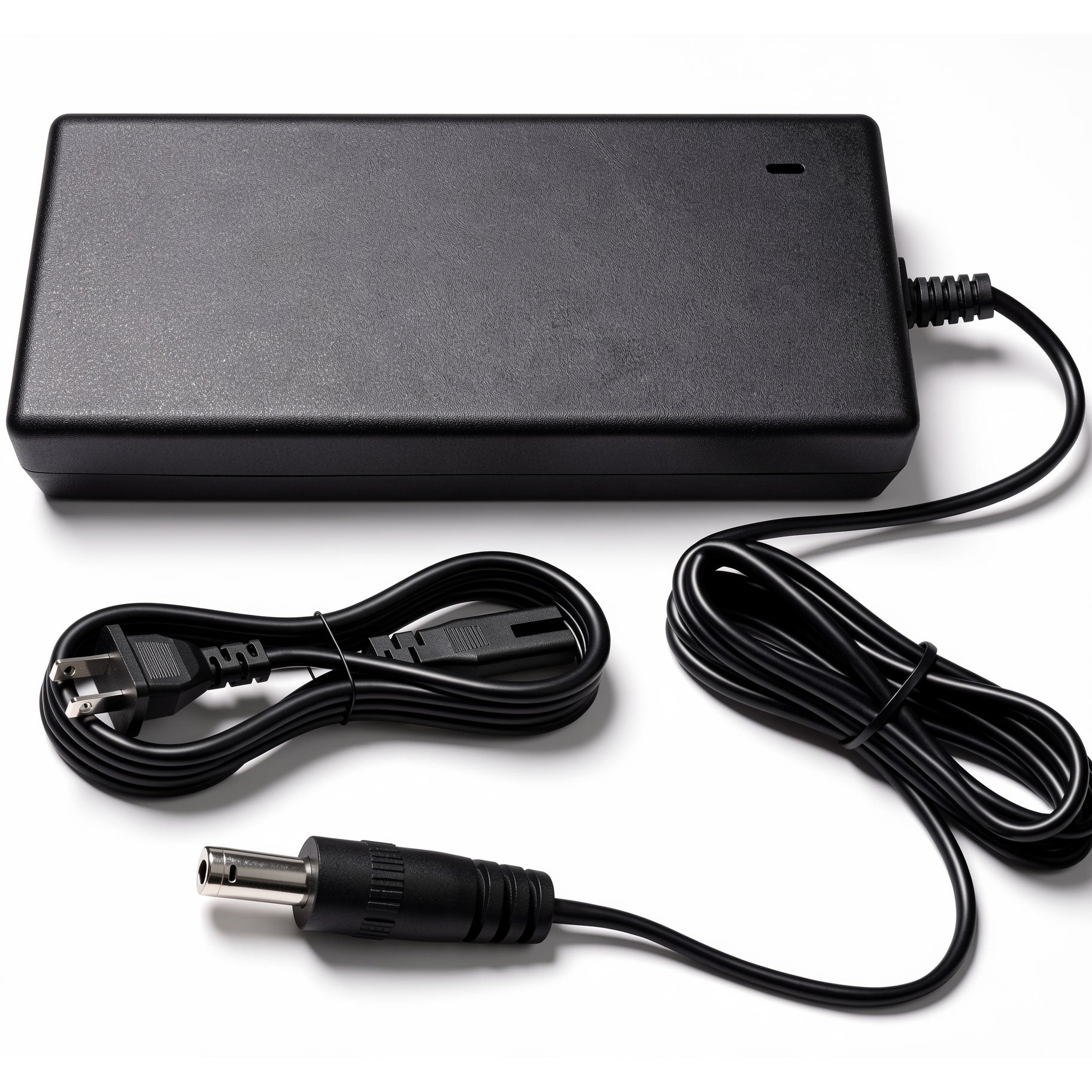

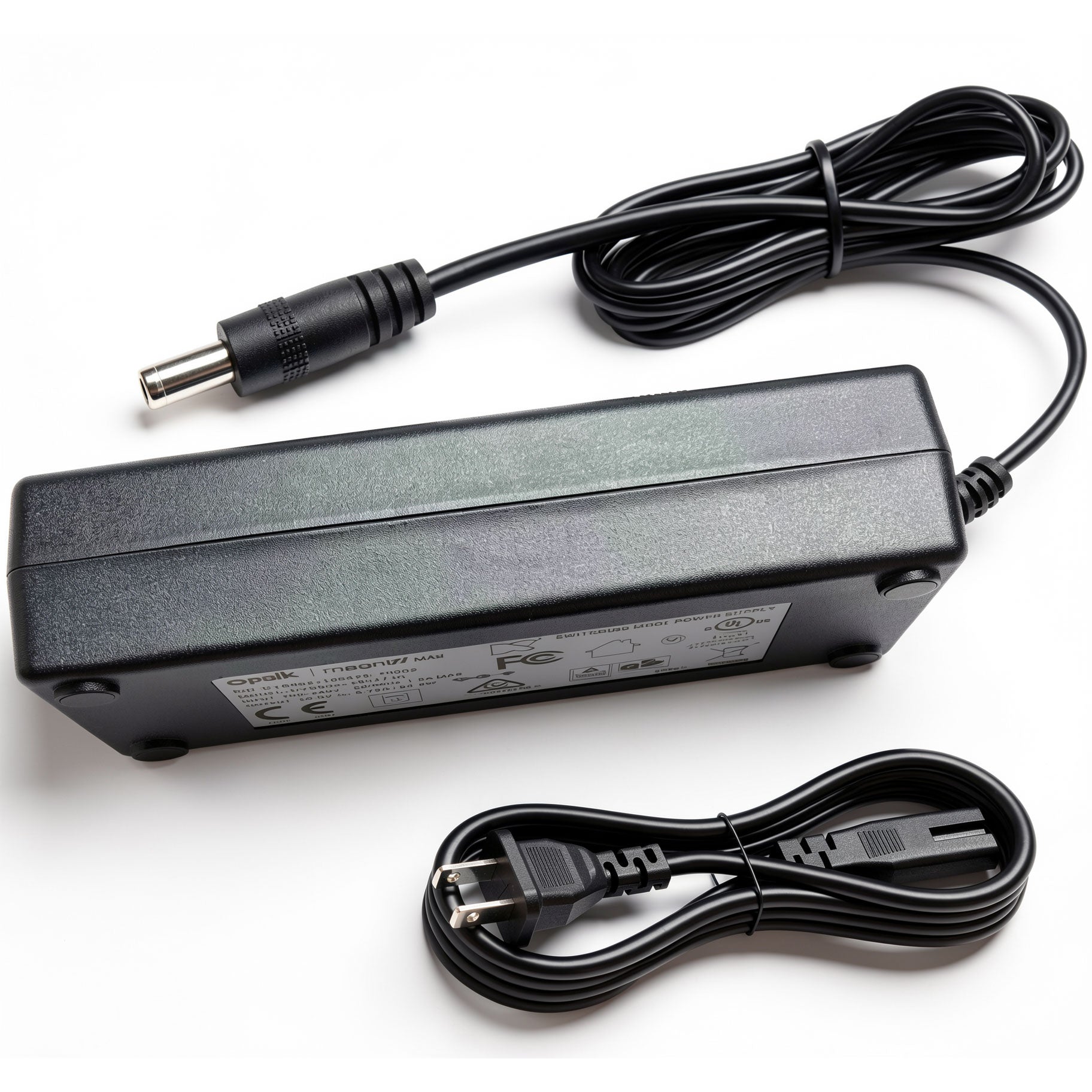

The DYS902-190473G is a 90W AC power adapter rated at 19V DC and 4.73A, featuring a 5.5mm locking DC connector. This version should be selected based on the complete electrical and connector requirements of the equipment rather than by output wattage or connector diameter alone.

Start With the Connector, Not Just the Wattage

For replacement power adapters, 19V and 4.73A identify the electrical output, but they do not by themselves establish compatibility. The connector also has to match the equipment's input interface.

This DYS902-190473G version uses a 5.5mm locking DC connector. The locking feature is an important distinction from a conventional non-locking DC barrel plug. If the equipment requires a locking connection, a standard plug with a similar-looking diameter should not be assumed to be interchangeable.

Before replacing an existing adapter, compare the connector on the original power supply with the replacement connector, including its locking mechanism and physical fit.

Electrical Compatibility

How to Check Compatibility Before Using This Adapter

A replacement adapter should be evaluated as a complete electrical and mechanical match. Check the following items on the original adapter or equipment label:

• Voltage: The equipment should require 19V DC.
• Current: The equipment's required current should not exceed the adapter's 4.73A rating.
• Connector: The equipment should use the matching 5.5mm locking DC interface.
• Polarity: Confirm that the DC output polarity matches the equipment requirement.
• Physical fit: The locking mechanism must engage correctly rather than simply fitting into the opening.

Do not choose this adapter solely because the connector appears to have a 5.5mm diameter. A conventional 5.5mm DC barrel plug and a locking connector can have similar external dimensions while providing different mechanical interfaces.

Why the Locking Connector Matters

A locking DC connector is useful where the power connection needs additional mechanical retention. Equipment that uses this type of interface may be exposed to movement, vibration, cable handling, or situations where an unsecured plug could become disconnected.

For this reason, connector compatibility should be treated as more than a question of whether the plug can enter the DC socket. The plug should seat correctly and engage the intended locking mechanism.

This is also why a generic "5.5mm DC adapter" should not automatically be presented as an equivalent replacement for a 5.5mm locking version.

When a 90W Adapter Is Appropriate

The DYS902-190473G provides approximately 89.9W based on its 19V and 4.73A output rating. The 90W class describes the maximum rated output capacity; it does not mean that connected equipment continuously consumes 90W.

For a replacement, the important question is whether the equipment is designed for 19V DC and whether its required operating current falls within the adapter's rated output. A higher-current-rated adapter can sometimes be used when voltage, polarity, connector, and other requirements are correct, but the equipment manufacturer's requirements should always take priority.

Common Replacement Errors

• Choosing by wattage only: Two 90W adapters can have completely different connectors and electrical requirements.
• Confusing locking and non-locking plugs: Similar-looking 5.5mm connectors are not necessarily mechanically interchangeable.
• Ignoring polarity: The voltage may match while the polarity does not.
• Using the wrong voltage: A 19V device should not be treated as compatible with an adapter simply because its current rating is similar.
• Assuming the connector size tells the whole story: Diameter alone does not establish connector compatibility.

OEM Model Identification

The DYS902-190473G designation identifies the adapter model. Some third-party listings also cross-reference DYS902-190473W with this power-supply family. However, a cross-reference should not be treated as proof that two physical versions are interchangeable when their connector construction differs.

For that reason, the safest replacement process is to compare the exact model number, output requirements, connector construction, and equipment-side interface before substituting another adapter.

Frequently Asked Questions

Can I use any 90W power adapter instead of the DYS902-190473G?

No. A 90W rating alone does not establish compatibility. The replacement should match the required voltage, polarity, connector interface, and other electrical requirements of the equipment.

Is the 5.5mm Lock connector the same as a standard 5.5mm DC plug?

No. The locking mechanism is part of the connector interface. A conventional non-locking plug should not be assumed to be interchangeable simply because its diameter appears similar.

What voltage does the DYS902-190473G provide?

The adapter provides 19V DC at up to 4.73A, corresponding to approximately 90W of maximum rated output.

Can a device requiring less than 4.73A use this adapter?

Potentially, provided the device requires 19V DC, the connector and polarity match, and the equipment manufacturer permits an adapter with this output capacity.

Can I use this adapter if my equipment uses a regular 5.5mm barrel connector?

Do not assume so. This version has a locking DC connector. Even when a regular barrel connector appears dimensionally similar, its mechanical interface may differ.

What should I check if the equipment does not power on?

First verify the equipment's required voltage and polarity, then check that the connector is fully seated and that the locking mechanism engages correctly. If those requirements match, inspect the adapter, power cord, and equipment-side DC input for damage.

The DYS DYS902-190473G is a 90W AC/DC power adapter providing 19V DC at 4.73A through a 5.5mm locking DC connector. It is intended as a replacement power source for equipment that specifically requires these electrical characteristics and the matching locking connector interface. The key replacement consideration is not wattage alone: users should verify 19V output, required current, polarity, physical connector fit, and the locking mechanism before using the DYS902-190473G or a cross-referenced power-supply model.
